Which VOC treatment route fits my emissions?

An RTO suits high-volume, steady VOC loads. Activated carbon adsorption suits intermittent coating and dilute streams. A zeolite rotor concentrator suits large, dilute exhaust volumes, and a catalytic oxidiser (RCO) suits smaller flows at a lower operating temperature.

What destruction efficiency is reached?

An RTO destroys ≥98% of VOCs with ≥95% heat recovery. A catalytic oxidiser reaches ≥97%, and a zeolite rotor paired with an RTO reaches ≥98% overall.

When does an RTO need no auxiliary fuel?

Above an inlet concentration of 250 mg/m³ the RTO is self-sustaining and needs no auxiliary fuel.

Can coating wastewater be treated and reused?

Yes. Pretreatment rinse and booth water are treated at 5–100 m³/day with ≥85% COD removal and 60–80% water reuse.

What information do you need to prepare a quotation?

Workpiece size, weight, geometry and material; the coating type (powder, liquid, UV or 2K); shift output, cycle time and colour requirements; and the available area, ceiling height, electrical and gas supply and emission requirements of your facility.

What do MUSI VOC treatment equipment cost and how long is the lead time?

Price is quoted per project, because every unit is configured to the buyer requirements, parts and production volume. Standard configurations ship in 30-60 days with a 12-month full-machine and 36-month critical-component warranty. On-site installation, commissioning and operator training are available worldwide. Structural parts are covered for up to 60 months.

VOC and Dust Control for Coating Lines

VOCs & Environmental Equipment Overview

The 'Environmental' in MUSI's name represents not just our company name but our commitment. Our Environmental Division has delivered VOCs and wastewater treatment solutions to 50+ coating facilities — all projects passed local environmental compliance reviews. MUSI Technology, based in Changzhou, China, is a turnkey supplier that builds both the coating line and its exhaust treatment — RTO, RCO, activated carbon, zeolite rotor and paint wastewater systems — and has equipped 50+ coating facilities whose projects all passed local environmental compliance reviews.

With increasingly strict global air emission standards, VOCs treatment is now mandatory for coating facilities. MUSI provides complete environmental solutions covering exhaust collection, concentration, incineration, and compliant emission.

Industries: Home Appliances, Furniture, Automotive Parts

Models in This Category

Regenerative Thermal Oxidizer (RTO)

3-chamber or 2-chamber RTO with ceramic regenerative heat exchanger recovering high-temperature exhaust heat. VOCs destruction efficiency ≥98% — the best solution for high-flow, low-concentration exhaust.

REGENERATIVE THERMAL OXID Details

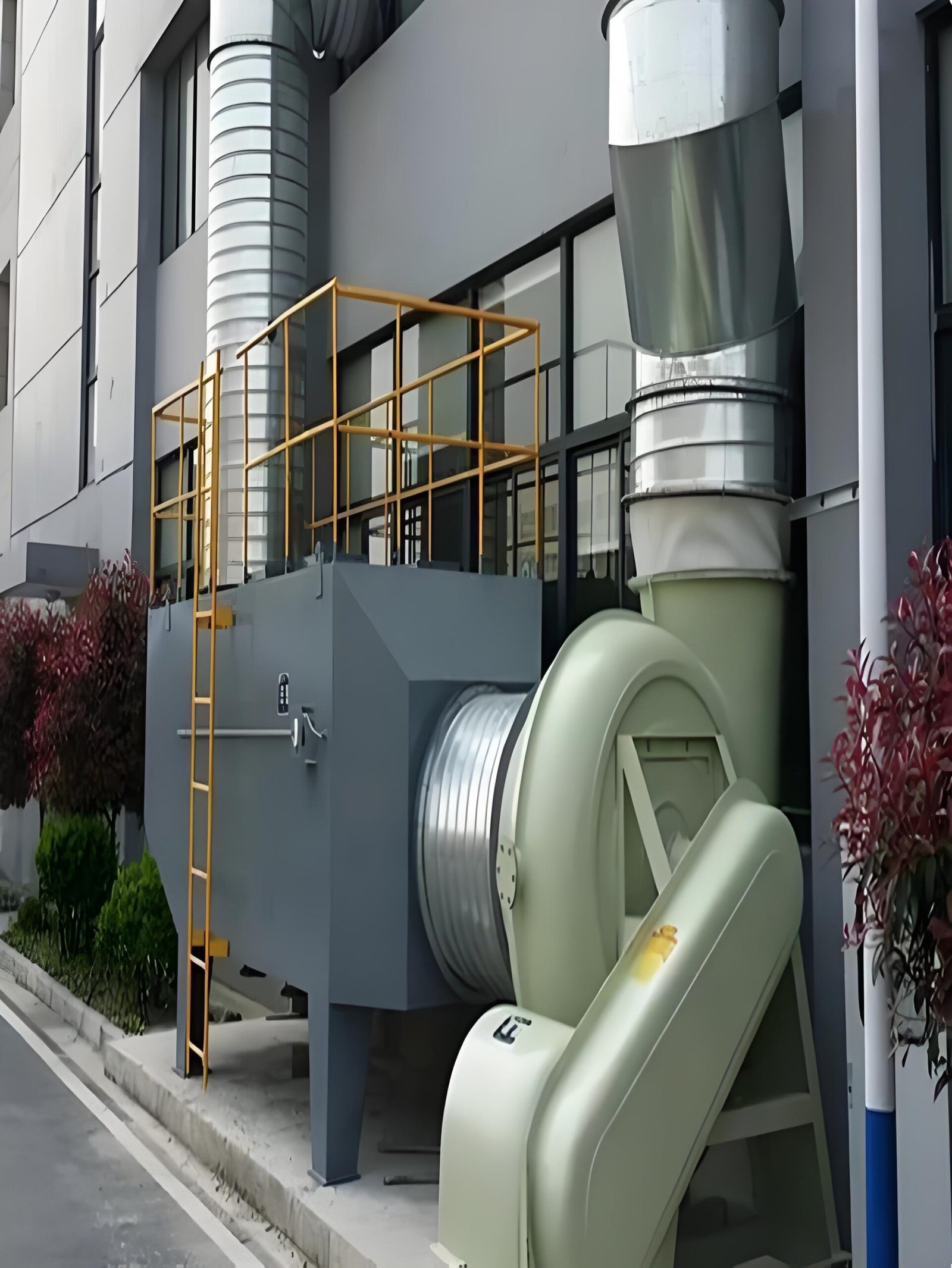

Activated Carbon Adsorption System

Honeycomb activated carbon adsorption + hot-air desorption + catalytic combustion combination — suitable for high-flow, low-concentration, intermittent exhaust.

ACTIVATED CARBON SYSTEM Details

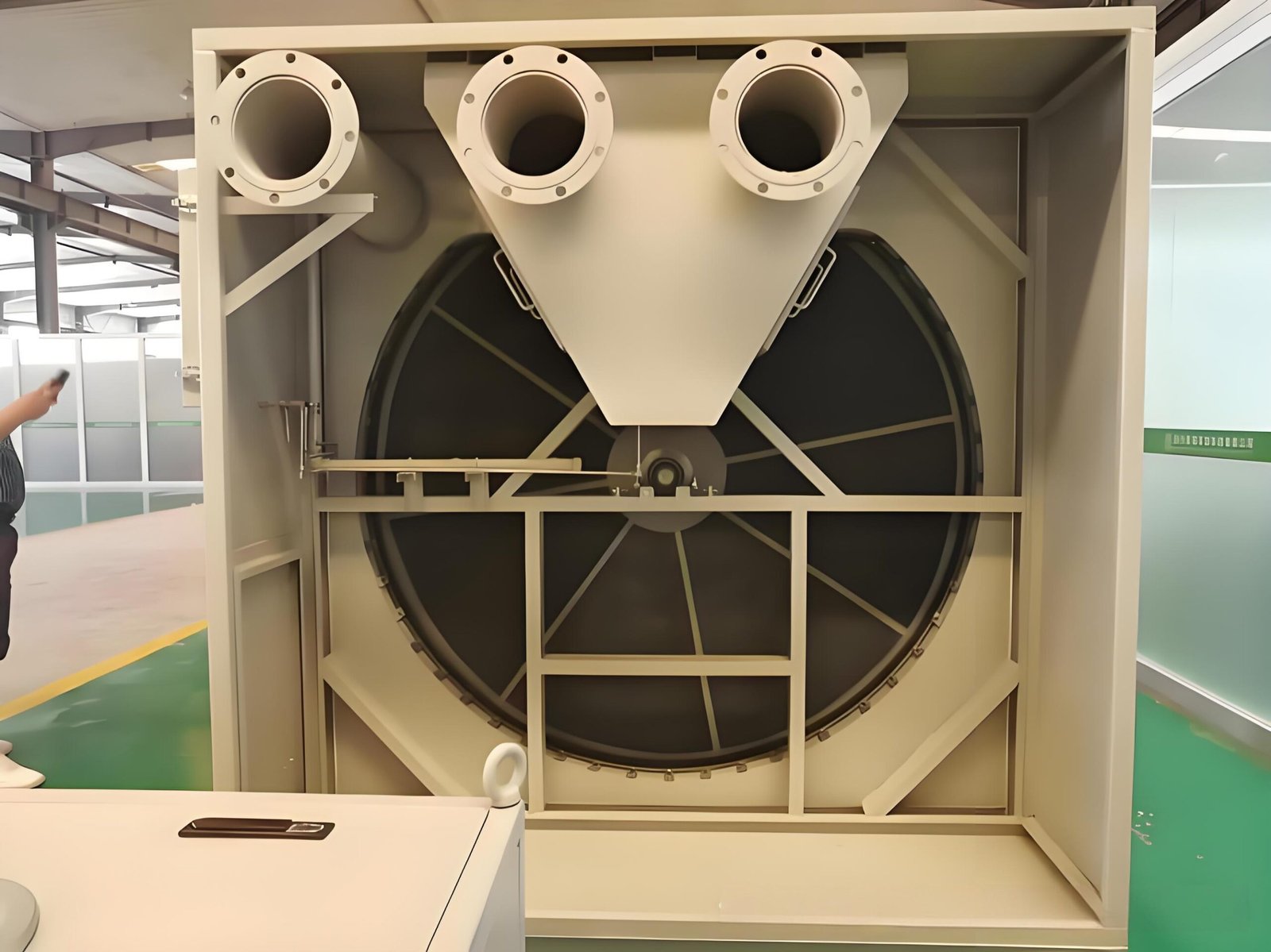

Zeolite Rotor Concentrator

Hydrophobic zeolite molecular sieve rotor — concentrates high-flow low-concentration VOCs by 10-15x, then incinerates via RTO. Currently the most widely specified solution.

ZEOLITE ROTOR CONCENTRATO Details

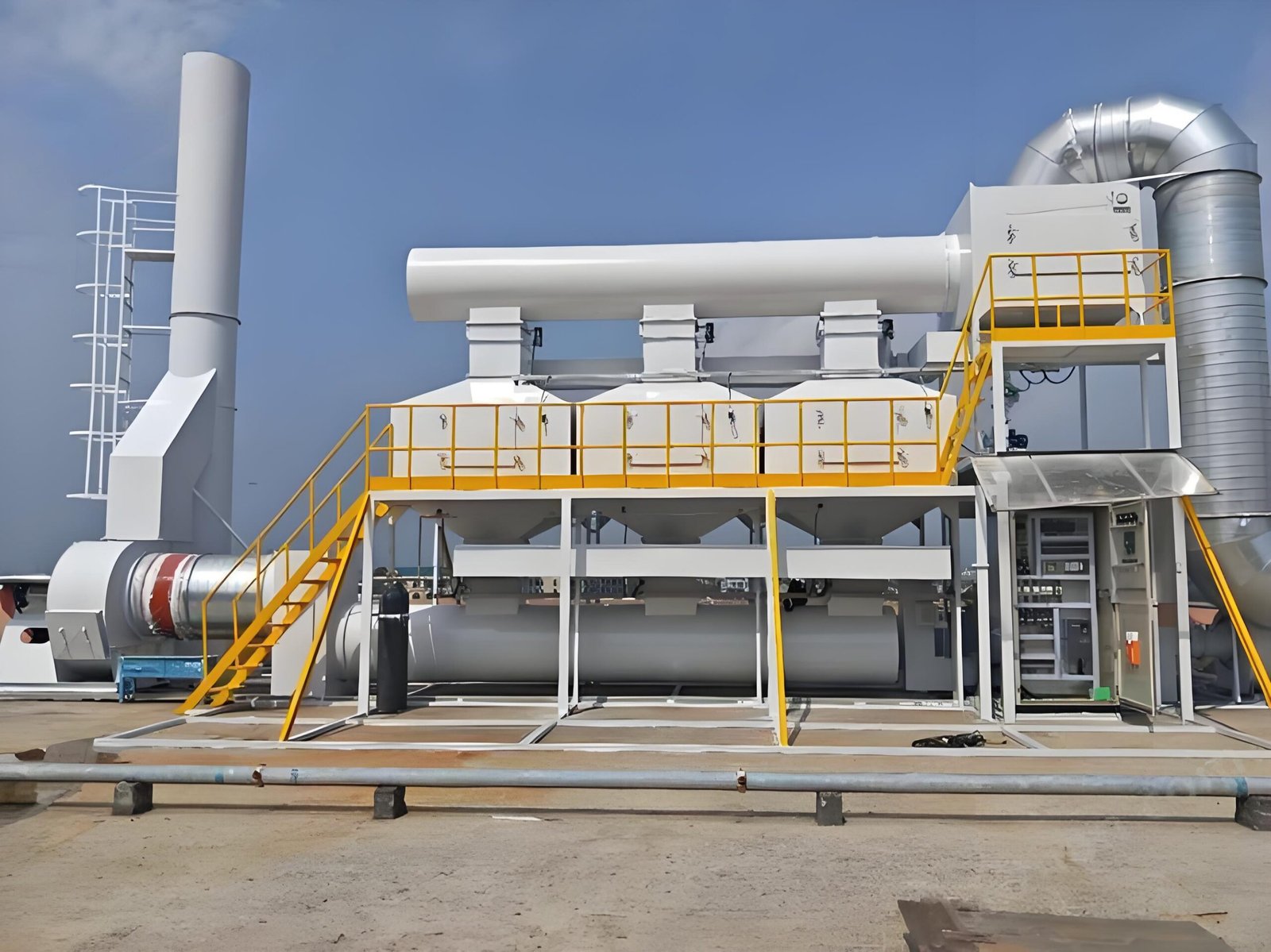

Catalytic Oxidizer (RCO)

Noble metal catalysts oxidize VOCs to CO₂ and H₂O at 250-400 °C — significantly lower temperature and energy use compared to RTO incineration.

CATALYTIC OXIDIZER Details

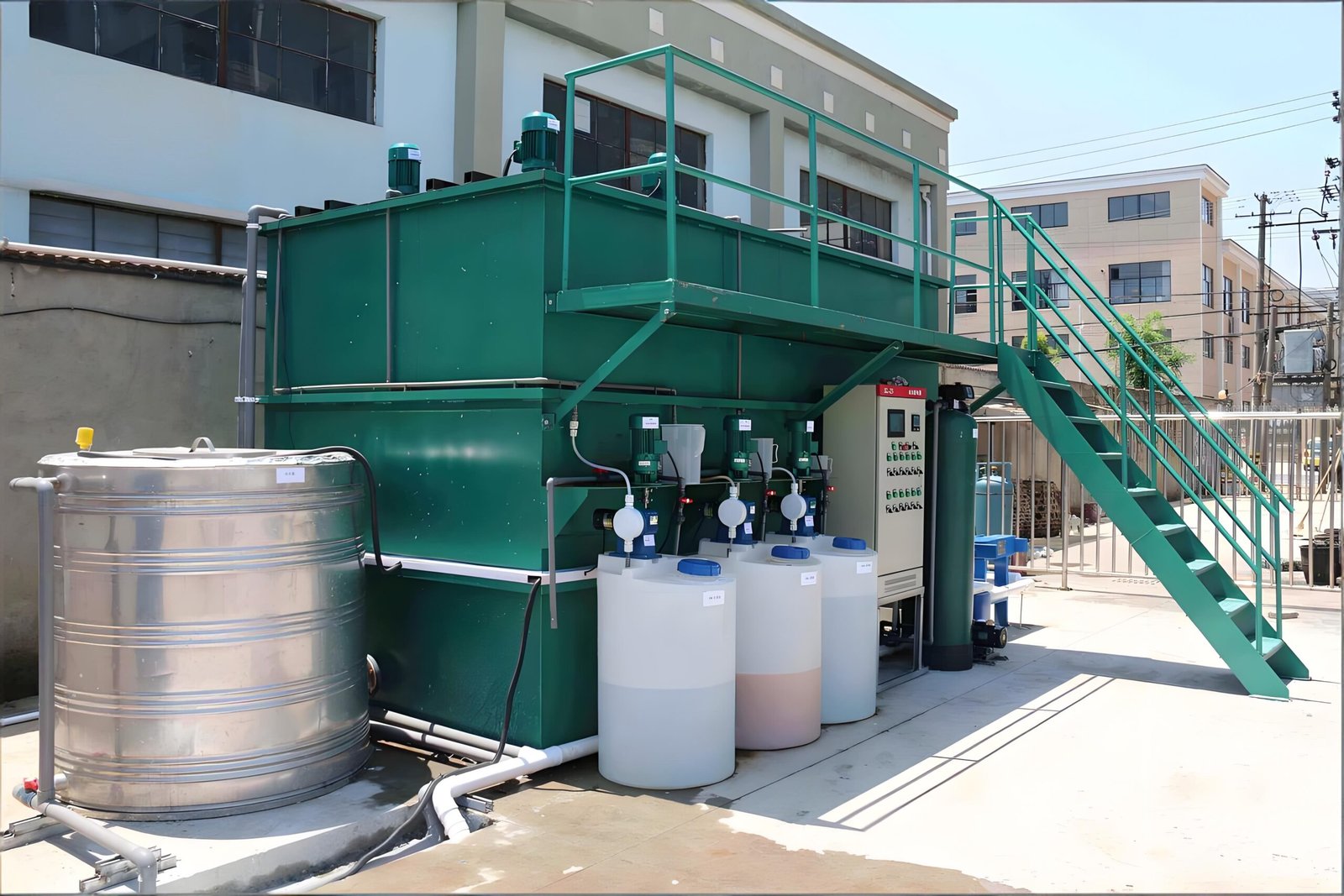

Paint Wastewater Treatment

For paint-laden wastewater from water-curtain spray booths and water-based paint operations — uses demulsification + flocculation + flotation + biological combined process for reuse or compliant discharge.

PAINT WASTEWATER TREATMEN Details

Selection Considerations

Different models target different applications and capacities. Before purchasing, please consider:

Workpiece characteristics — size, weight, geometry (flat / 3D), material (metal / plastic / wood)
Coating type — powder / liquid / UV / 2K, etc.
Capacity needs — shift output, cycle time, multi-color requirements
Facility conditions — available area, ceiling height, electrical/gas supply, emission requirements
Budget — balance of upfront investment and long-term running cost

MUSI engineers can run process simulations and ROI calculations based on your specifics. Contact us for a free proposal.

Type	Typical use	Published figures
Regenerative thermal oxidiser (RTO)	High-volume, steady VOC loads	5,000–100,000 m³/h; VOC destruction ≥98%; heat recovery ≥95% (3-chamber) or 90% (2-chamber); combustion 760–820 °C; inlet ≤2,000 mg/m³; self-sustaining above 250 mg/m³
Activated carbon adsorption	Intermittent coating, dilute streams	10,000–50,000 m³/h; honeycomb or granular carbon; adsorption ≥90%; hot-air desorption at 120–180 °C; desorbed gas to catalytic oxidation or reuse; carbon bed life 1–2 years
Zeolite rotor concentrator	Large, dilute exhaust volumes	20,000–200,000 m³/h; concentration ratio 10–15×; adsorption ≥95%; desorption 180–200 °C; hydrophobic zeolite; rotor life ≥8 years; overall destruction ≥98% paired with an RTO
Catalytic oxidiser (RCO)	Smaller flows, lower operating temperature	3,000–30,000 m³/h; VOC destruction ≥97%; catalyst 250–400 °C; Pt/Pd catalyst, 3–5 year life; heat recovery ≥85%; inlet 200–3,000 mg/m³
Coating wastewater treatment	Pretreatment rinse and booth water	5–100 m³/day; demulsification, flocculation, flotation, biological and filtration stages; COD removal ≥85%; water reuse 60–80%; plate-frame press to ≤80% sludge moisture; fully automatic PLC

Best suited for	VOC exhaust and wastewater from coating facilities
Configurations	Regenerative thermal oxidiser (RTO) · Activated carbon adsorption · Zeolite rotor concentrator · Catalytic oxidiser (RCO) · Coating wastewater treatment
Air volume	3,000–200,000 m³/h
VOC destruction	≥98% with an RTO, ≥97% with a catalytic oxidiser (RCO)
Lead time	30-60 days for standard configurations
Warranty	12 months on the full machine, 36 months on critical components
Delivery record	800+ coating lines for 500+ clients in 36 countries (MUSI engineering team, cumulative since 2011)
Services	Design, manufacturing, installation, commissioning, operator training and after-sales support from one company
Price	Quoted per project, based on parts, configuration and production volume

Type	Published figures
Regenerative thermal oxidiser (RTO)	5,000–100,000 m³/h; VOC destruction ≥98%; heat recovery ≥95% (3-chamber) or 90% (2-chamber); combustion 760–820 °C; inlet ≤2,000 mg/m³; self-sustaining above 250 mg/m³
Activated carbon adsorption	10,000–50,000 m³/h; honeycomb or granular carbon; adsorption ≥90%; hot-air desorption at 120–180 °C; desorbed gas to catalytic oxidation or reuse; carbon bed life 1–2 years
Zeolite rotor concentrator	20,000–200,000 m³/h; concentration ratio 10–15×; adsorption ≥95%; desorption 180–200 °C; hydrophobic zeolite; rotor life ≥8 years; overall destruction ≥98% paired with an RTO
Catalytic oxidiser (RCO)	3,000–30,000 m³/h; VOC destruction ≥97%; catalyst 250–400 °C; Pt/Pd catalyst, 3–5 year life; heat recovery ≥85%; inlet 200–3,000 mg/m³
Coating wastewater treatment	5–100 m³/day; demulsification, flocculation, flotation, biological and filtration stages; COD removal ≥85%; water reuse 60–80%; plate-frame press to ≤80% sludge moisture; fully automatic PLC
