Industry Overview
Professional vertical powder coating solutions for aluminum profiles up to 7 m long — paired with outdoor weatherable powders for 25+ year service life.
What is an aluminium profile coating line?
An aluminium profile coating line pretreats, powder coats and cures extruded aluminium profiles as they hang from an overhead conveyor. For architectural, door and window, curtain wall and industrial profiles, MUSI Technology builds vertical powder coating lines: profiles of typically 4–7 m hang upright through an 8–9 m booth with spray guns arranged around the profile, so every face is coated in one pass, and the vertical powder coating system accepts profiles up to 8 m long. A complete line combines chrome-free pretreatment, outdoor polyester or PVDF fluorocarbon powder tested to 2,000+ hours of salt spray, automatic loading and unloading run by 1–2 operators, and a bridge gas oven with heat recovery. MUSI aluminium profile lines are running in the United Arab Emirates, Australia and Indonesia.
Typical Workpieces
MUSI has served the Aluminum Profiles industry with workpieces including:
- Architectural aluminum profiles
- Door & window profiles
- Curtain wall profiles
- Industrial aluminum profiles
- Solar panel frames
- Automotive aluminum profiles
- Furniture aluminum profiles
- Lighting aluminum profiles
Industry Coating Challenges
Each industry faces unique coating challenges. MUSI's solutions are designed to address these pain points directly:
Long Slim Workpieces
Aluminum profiles are typically 4-7 m long — too long for standard overhead chain layouts. Vertical booths required.
Critical Coating Uniformity
All four faces of door & window profiles need uniform coating with no powder buildup or missed spots.
Demanding Outdoor Environment
Building exterior aluminum profiles must withstand 25 years of UV, rain, and temperature swings.
High-Volume Continuous
Aluminum mills often run hundreds of thousands of meters per year — requiring 24/7 line operation.
MUSI's Targeted Solutions
To address these challenges, MUSI provides industry-specific coating solutions:
1. Vertical Powder Coating System
Workpieces hang vertically through 8-9 m booth with circumferential spray gun layout — no powder buildup, no missed spots, 200-600 m²/hour throughput.
2. Outdoor Weatherable Powder
Recommended outdoor polyester or PVDF fluorocarbon powder — 2,000h+ salt spray, 5,000h+ QUV testing.
3. Auto Loading & Unloading
Automated load/unload allows 1-2 operators to monitor the entire line — 60%+ labor savings.
4. Precise Energy-Saving Temp. Control
Bridge gas oven + hot air recirculation + heat recovery — energy cost as low as $0.02 USD per profile meter.
Vertical or horizontal: which line suits aluminium profiles?
A vertical line is the usual choice for high-volume architectural profiles; a horizontal line suits shorter profiles, mixed part shapes and lower buildings. Building height usually decides it: a vertical line needs 10–14 m of clear internal height.
| Criterion | Vertical line | Horizontal line |
|---|---|---|
| Building height needed | 10–14 m | 6–8 m |
| Footprint for equal output | 40–60% smaller | Larger |
| Handling marks | Minimal, one hanging point | More contact points |
| Film uniformity | High | Medium |
| Best for | Architectural profiles, high volume | Mixed parts, shorter profiles |
Line speed, output and indicative budgets for both layouts are compared in our vertical vs horizontal aluminium profile coating line guide.
What pretreatment do aluminium profiles need before powder coating?
Architectural aluminium profiles use a chrome-free multi-stage spray pretreatment with a titanium or zirconium conversion coating; the iron and zinc phosphate chemistry used for steel is not suitable for aluminium.
| Stage | Typical parameters |
|---|---|
| Alkaline degrease | 50–60 °C, 90–120 s |
| Acid or alkaline etch | Removes 1–3 g/m² of surface aluminium |
| Chrome-free Ti/Zr conversion | 25–35 °C, 60–90 s |
| Deionised final rinse | Conductivity under 30 µS/cm |
| Dry-off | 100–120 °C for 10–15 min |
Rinse stages run between each chemical stage. Where a Qualicoat or similar class approval is required, the pretreatment chemistry, powder and process parameters must come from an approved combination. Phosphate and zirconium options are compared in the pretreatment line guide.
Wood-grain finishes are produced by sublimation transfer after powder coating: the coated profile is wrapped in printed film or passed through a transfer machine, then held at 180–200 °C for 3–8 minutes so the ink migrates into the powder film. It needs a transfer-compatible polyester powder and adds a transfer oven and a wrapping or vacuum station to the line.
Recommended Equipment
Typical projects in this industry use the following MUSI products in combination — exact selection depends on workpiece specifics:

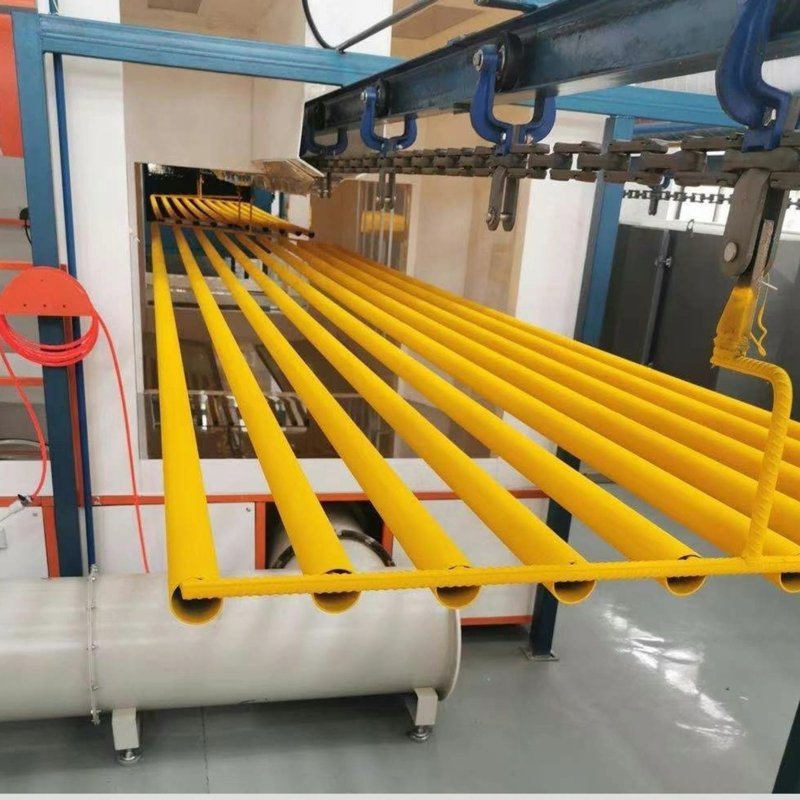

Vertical Powder Coating System
Powder Recovery System
Sandblasting & Shot Peening Systems
Regenerative Thermal Oxidizer (RTO)
Featured Case Studies
Selected projects MUSI has delivered for clients in this industry. More projects in our Case Studies section:
Vertical Powder Coating for Aluminum Profiles
View DetailsDoor & Window Profile Continuous Coating
View Details
Metal Tube Automatic Coating Line
View Details
Complete Coating Workshop EPC Project
View DetailsProject References
| Case study | Location | Year |
|---|---|---|
| Vertical Powder Coating for Aluminum Profiles | United Arab Emirates | 2023 |
| Door & Window Profile Continuous Coating | Australia | 2023 |
| Complete Coating Workshop EPC Project | Chile | 2023 |
| Metal Tube Automatic Coating Line | Pakistan | 2023 |
| Aluminium Profile Powder Coating Line, Indonesia | Indonesia | 2026 |
What have MUSI aluminium profile lines delivered?
| Project | Line configuration | Published result |
|---|---|---|
| Vertical line for architectural profiles, United Arab Emirates (2023) | 9 m vertical booth, 14 guns (circumferential + vertical reciprocator); profiles 1.5–7 m; conveyor 0.8–2.5 m/min; 9 m bridge gas oven at 200–220 °C; 400–500 m²/h | Daily output up from 1,800 m to 4,500 m; 2,200 hours salt spray without defects; 95 days from site survey to production launch |
| Door and window profile line, Australia (2023) | Vertical continuous line; profiles 1.5–6.5 m; 8 independent powder hoppers; inline colour meter sampling every 30 m; film 60–100 μm; 1,000,000 m of profile a year | 12-minute colour change; 99.8% colour consistency pass rate; capacity 80% above the old line |
| Aluminium profile powder coating line, Indonesia (2026) | Complete electrostatic powder line, about 108 t of equipment: pretreatment, booths with automatic reciprocators, cyclone recovery, curing oven and conveyor for long profiles | Built for an extruder running five presses with a stated 1,000 t of profile a month; shipped June 2026, spare parts August 2026 |
Figures are those published on each case study page for the stated operating conditions; they are not guaranteed values for other plants.
