Powder coating equipment is one of MUSI's signature product lines, with 200+ delivered installations. Our quick color-change technology, vertical booths, and powder recovery filtration systems all hold proprietary patents. MUSI Technology, based in Changzhou, China, manufactures these powder systems and has delivered 800+ coating lines to 36 countries including Vietnam, Indonesia, India, the UAE, Mexico and Australia; quick colour-change booths switch colours in 5–15 minutes.
Powder coating has become the leading method for hardware, appliance, and aluminum profile industries — eco-friendly (virtually zero VOCs), excellent durability, superior mechanical properties. MUSI offers the full range from manual to fully automatic, single-color to multi-color quick-change systems.
Budget — balance of upfront investment and long-term running cost
MUSI engineers can run process simulations and ROI calculations based on your specifics. Contact us for a free proposal.
Need a custom coating line for your factory?
Tell us about your workpieces and capacity requirements. Our engineers reply within 24 hours; a tailored configuration and quotation follow once your part data is complete.
Which powder coating configuration fits your parts?
MUSI builds five powder coating configurations. A standard electrostatic booth runs 2–16 guns at 60–100 kV with ≥95% recovery and a 30–60 minute colour change. The vertical system lifts recovery to ≥98% on workpieces up to 8 m, while the quick-change booth cuts colour change to 5–15 minutes and allows 10–30 changes per day instead of 2–5. Dedicated recovery equipment reclaims powder at ≥95% on a single colour, rising to ≥99% with a 100–200 mesh sieve.
Colour change 5–15 min against 30–60 standard; 4–12 guns with quick-disconnect couplings; antistatic PTFE liner; recovery per colour ≥97%; 10–30 colour changes per day against 2–5 standard
1–2 handheld guns at 60–100 kV; compact 1.5×1.5×2 m booth; 0–100 kV adjustable at the gun; 25–50 L hopper; 0.4–0.6 MPa at 0.3–0.6 m³/min
Figures are the published specification ranges for each configuration. Final values are fixed during line layout design against your part mix and takt time.
Powder Coating Line: Types, Specs & Cost (2026) A powder coating line pretreats, coats and cures metal parts on a conveyor. Full guide to line types, key specifications and 2026 price ranges.
How to Choose a Powder Coating Line Maker (2026) Ten criteria for selecting a powder coating line manufacturer: engineering depth, component brands, factory audit, lead time, warranty and support.
Automatic powder coating line manufacturer: what MUSI supplies
As a powder coating line manufacturer we supply the complete automatic powder coating line: pretreatment plant, drying oven, electrostatic powder coating booth, powder recovery and filtration system, curing oven, overhead conveyor and dust collection, plus manual and semi automatic powder coating systems for smaller plants. Powder coating equipment manufacturers differ mainly in booth recovery efficiency, oven uniformity and conveyor design; see the powder coating line guide and the complete coating line cost guide.
Powder coating line price range
Indicative ex-works budget from our published cost guide: a semi-automatic powder coating line is roughly USD 75,000-230,000, a standard automatic line USD 200,000-600,000, and large multi-line plants above that. Pretreatment stages, oven length, recovery type and automation level move the number; VOC control can add USD 80,000-400,000 on solvent lines. Send your part mix and output target for a line-specific quotation.
Scope of supply and next step
Supplied by MUSI
MUSI supplies the complete powder coating production line: pretreatment, dry-off oven, powder booth with recovery, curing oven and conveyor, as well as single booths. Powder recovery is 95% or more on a single colour.
Not included in the scope of supply
Civil works, foundations and pits
Building services up to the battery limit: power supply, gas, compressed air, water and drainage
Local permits, emission approvals and third-party inspections
Paint or powder supply, unless stated in the contract
What to send for a quotation: part drawings or photos, the largest part size and weight, the material, the required output per shift and cycle time, the coating type (powder, liquid, UV or 2K) and the number of colours, and the available floor space, ceiling height, power or gas supply and local emission requirements.
Every line is engineered against a written performance specification. Line speed, cure profile, film build and emission level are stated in the contract and demonstrated on your own part at the factory trial run before shipment. One engineering team owns the whole chain — pretreatment, application, curing, conveying and emission control — so the trade-offs between them are settled on the drawing board, not on your factory floor.
Service & Delivery
Standard configurations ship in 30-60 days with a 12-month full-machine and 36-month critical-component warranty. On-site installation, commissioning and operator training are available worldwide, and process tuning and spare parts support continue for the working life of the line. Structural parts are covered for up to 60 months.
Frequently Asked Questions
Which powder coating configuration fits my parts?
An electrostatic powder booth suits general-purpose powder application. The vertical system suits long profiles, extrusions and panels up to 8 m. The quick colour-change booth suits high-mix work with frequent colour changes, and the manual booth suits samples, repairs and low volume.
How fast is a colour change?
A standard electrostatic booth changes colour in 30–60 minutes. The quick colour-change booth cuts this to 5–15 minutes and allows 10–30 changes per day instead of 2–5.
How much powder is recovered?
Cyclone plus cartridge recovery reclaims at least 95% on a single colour, rising to at least 99% with a 100–200 mesh sieve. The vertical system reaches at least 98%.
How much does a powder coating line cost?
Indicative ex-works budget from our published cost guide: a semi-automatic powder coating line is roughly USD 75,000-230,000, a standard automatic line USD 200,000-600,000, and large multi-line plants above that. Pretreatment stages, oven length, recovery type and automation level move the number; VOC control can add USD 80,000-400,000 on solvent lines. Send your part mix and output target for a line-specific quotation.
What information do you need to prepare a quotation?
Workpiece size, weight, geometry and material; the coating type (powder, liquid, UV or 2K); shift output, cycle time and colour requirements; and the available area, ceiling height, electrical and gas supply and emission requirements of your facility. Send part drawings or photos, the largest part size and weight, the material, the required output per shift, the paint or powder type and number of colours, and the available floor space, ceiling height and power or gas supply. MUSI engineers reply within 24 hours; a recommended configuration and quotation follow once your part data is complete.
Q
Questions buyers ask before ordering
quotation · price · lead time · installation · warranty
Standard configurations ship in 30–60 days from contract signing and down payment; custom configurations take longer. The delivery date is fixed in the contract.
Do you install and train operators overseas?
Yes. MUSI engineers carry out on-site installation and commissioning and give 3–5 days of operator and maintenance training. MUSI has delivered 800+ coating lines to customers in 36 countries.
What warranty and after-sales support are included?
12 months full-machine warranty, 36 months on critical components and up to 60 months on structural parts. International customers get 24-hour phone response and 72-hour on-site arrival; spare parts ship from the Changzhou headquarters.
Can the environmental equipment be supplied with the line?
Yes. VOC treatment (RTO, RCO, activated carbon, zeolite rotor), dust collection and paint wastewater treatment are supplied with the coating line under one contract; MUSI has equipped 50+ coating facilities whose projects all passed local environmental compliance reviews.
Do you supply a complete powder coating production line or only the booth?
MUSI supplies the complete powder coating production line: pretreatment, dry-off oven, powder booth with recovery, curing oven and conveyor, as well as single booths. Powder recovery is 95% or more on a single colour.
Manufacturer: MUSI Technology (Changzhou MUSI Environmental Technology Co., Ltd.), Changzhou, China. MUSI designs, builds and installs this equipment as a single unit or as part of a turnkey coating line.
Best suited for
Hardware, home appliances and aluminium profiles, from manual booths to fully automatic lines
Configurations
Electrostatic powder booth · Vertical powder coating system · Quick colour-change booth · Powder recovery system · Manual powder booth
Powder recovery
≥95% on a single colour, ≥99% with a reclaim sieve
Colour change
5–15 min on the quick colour-change booth, 30–60 min on a standard booth
Lead time
30-60 days for standard configurations
Warranty
12 months on the full machine, 36 months on critical components
Delivery record
800+ coating lines for 500+ clients in 36 countries (MUSI engineering team, cumulative since 2011)
Services
Design, manufacturing, installation, commissioning, operator training and after-sales support from one company
Price
USD 75,000-230,000 for a semi-automatic line, USD 200,000-600,000 for a standard automatic line (ex-works, indicative)
Specifications, delivery and support
What are the main specifications of MUSI powder coating systems?
Conveyor height 4–7 m; workpieces up to 8 m; 6–24 guns on vertical reciprocators; booth 8×3×6 m typical; powder recovery ≥98%; colour change 15–30 min

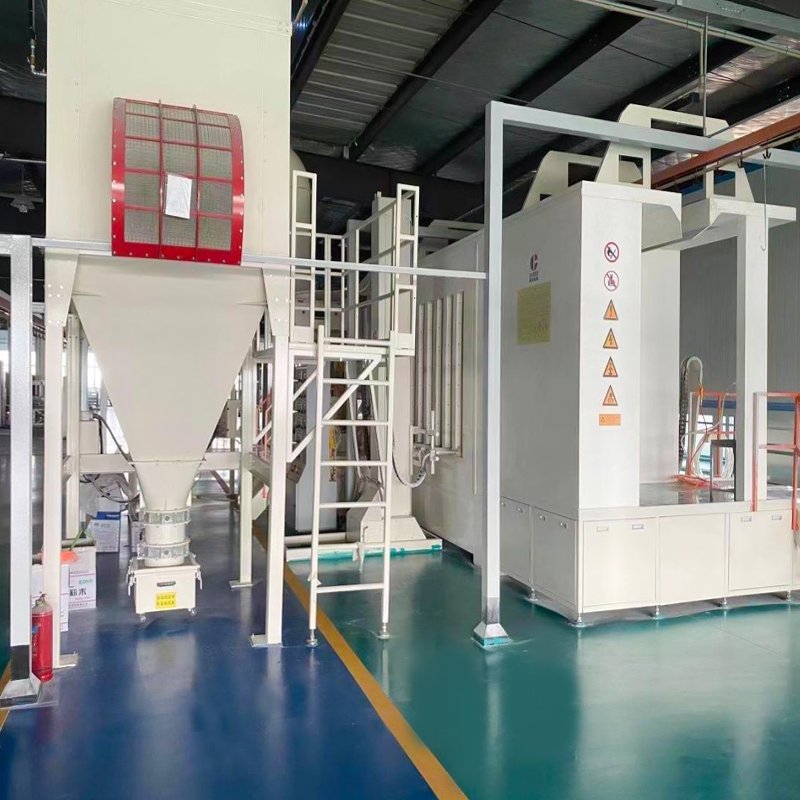

Quick colour-change booth
Colour change 5–15 min against 30–60 standard; 4–12 guns with quick-disconnect couplings; antistatic PTFE liner; recovery per colour ≥97%; 10–30 colour changes per day against 2–5 standard
Powder recovery system
Cyclone first stage ≥85%; cartridge filter area 50–200 m²; total recovery ≥95% single colour, ≥99% with sieve; 100–200 mesh reclaim sieve; 0.4–0.6 MPa pulse cleaning; maintenance interval 6–12 months

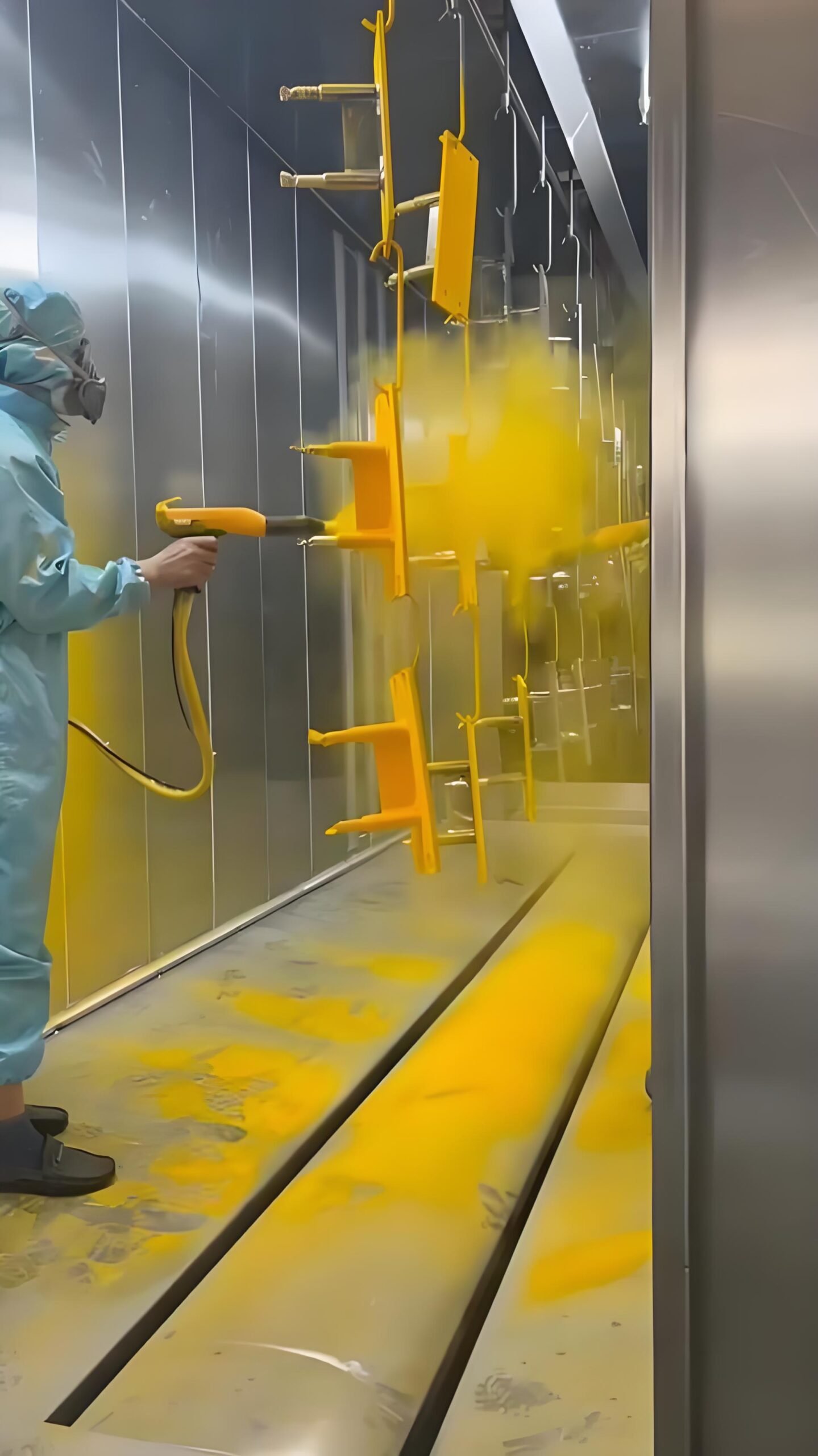

Manual powder booth
1–2 handheld guns at 60–100 kV; compact 1.5×1.5×2 m booth; 0–100 kV adjustable at the gun; 25–50 L hopper; 0.4–0.6 MPa at 0.3–0.6 m³/min
Figures outside these ranges are met with a custom-engineered build.
What do MUSI powder coating systems cost and how long is the lead time?
Price is quoted per project, because every unit is configured to the buyer requirements, parts and production volume. Standard configurations ship in 30-60 days with a 12-month full-machine and 36-month critical-component warranty. On-site installation, commissioning and operator training are available worldwide. Structural parts are covered for up to 60 months.
