Heavy Machinery Coating Lines

Industry Overview

Professional coating solutions for construction equipment, agricultural machinery, machine tools, and heavy equipment — workpieces up to 12 m long, 6 m wide.

Typical Workpieces

MUSI has served the Heavy Machinery industry with workpieces including:

Excavator chassis
Loader booms
Tractor housings
Machine tool beds
Pressure vessels
Steel structures
Mining equipment
Port machinery

Industry Coating Challenges

Each industry faces unique coating challenges. MUSI's solutions are designed to address these pain points directly:

Oversized & Heavy

Heavy equipment can weigh several tons and span over 10 meters — beyond standard line capacity.

Heavy Oil & Rust

Raw steel structures often have cutting oil, anti-rust oil, and oxide layers — strict pretreatment is essential.

Outdoor Durability

Outdoor-use equipment must resist UV, salt spray, acid rain — coating life targets 10+ years.

Small Batches, Many Variants

Typically single-piece or small-batch custom production — difficult to use flow lines, mostly spray booth + drying booth.

MUSI's Targeted Solutions

To address these challenges, MUSI provides industry-specific coating solutions:

1. Large Auto Spray Booths

Standard spray booth 12×6×5 m, with drive-through doors for forklift access. Air supply 60,000-100,000 m³/h with three-stage filtration.

2. Heavy-Duty Pretreatment

High-pressure spray degreasing + shot blast derusting + multi-stage phosphate or silane treatment for excellent coating adhesion.

3. Heavy-Duty Anti-Corrosion Coating

Three-layer system: epoxy primer + epoxy intermediate + polyurethane topcoat — passes 2,000+ hour salt spray, 15+ year outdoor life.

4. Multi-Fuel Curing Ovens

Natural gas, diesel, or electric heating options — adapts to local energy availability.

Recommended Equipment

Typical projects in this industry use the following MUSI products in combination — exact selection depends on workpiece specifics:

Which heavy machinery coating lines has MUSI delivered?

MUSI Technology, a coating line manufacturer in Changzhou, China, builds coating lines and coating workshops for heavy machinery parts, with pretreatment, spray booths, curing and conveyors sized for the largest and heaviest part. Delivered projects include:

Project	Parts	Published scope
Russia, 2023	Excavator booms and loader chassis	12 × 6 × 5 m spray booth and matching drying booth; parts up to 10 × 4 × 4 m and 8 tonnes
Chile, 2023	Mining equipment	Turnkey 6,000 m² coating workshop delivered as EPC contractor in six months
Kazakhstan	Vehicle frames, chassis parts and cargo bodies	Overhead conveyor coating line on a steel-structure platform
Jiangsu, China	Construction machinery and agricultural equipment parts	Pretreatment for heavy steel, spray booths, curing oven sized for thick plate
Hefei, China	Forklift frames, masts, counterweights and overhead guards	Heavy-duty conveyor coating line
Zhangjiagang, China	Tower crane mast sections and construction hoists	Spray booths with two-level steel platforms
Guangxi, China	Operator cabs for loaders, graders, excavators, forklifts and tractors	Coating line with pretreatment, spray booths and curing sized to the cab
Shandong, China	Hydraulic cylinder barrels and assemblies	Coating line for long, heavy cylinder barrels

For export projects MUSI quotes the line with on-site installation, commissioning and operator training.

Featured Case Studies

Selected projects MUSI has delivered for clients in this industry. More projects in our Case Studies section:

Construction Equipment Coating Workshop

View Details

Sheet Metal Cabinet Drying Oven

View Details

Complete Coating Workshop EPC Project

View Details

Metal Tube Automatic Coating Line

View Details

Project References

Case study	Location	Year
Construction Equipment Coating Workshop	Russia	2023
Sheet Metal Cabinet Drying Oven	Germany	2023
Complete Coating Workshop EPC Project	Chile	2023
Metal Tube Automatic Coating Line	Pakistan	2023
Forklift Frame & Mast Coating Line, Hefei	China	2026
Machinery & Agricultural Parts Coating Line, Jiangsu	China	2026
Hydraulic Cylinder Coating Line, Shandong	China	2026
Tower Crane Mast Section Coating Line, Zhangjiagang	China	2026
Operator Cab Coating Line, Guangxi	China	2026

Schedule a Consultation

The optimal solution depends on your specific workpieces, capacity, facility, and budget. MUSI provides a free consultation service including:

1-on-1 process consultation with our engineers
Preliminary CAD line layout
Equipment list and preliminary quotation
Reference cases from similar industries
Welcome to visit MUSI's factory in Changzhou

Schedule Consultation

Key facts

Manufacturer: MUSI Technology (Changzhou MUSI Environmental Technology Co., Ltd.), Changzhou, China. MUSI designs, builds and installs coating lines for heavy machinery as turnkey projects.

Best suited for	Construction equipment, agricultural machinery, machine tools and heavy equipment
Workpiece size	Up to 12 m long and 6 m wide
Typical workpieces	Excavator chassis, loader booms, tractor housings, machine tool beds, pressure vessels, mining and port machinery
Spray booth	Standard 12 × 6 × 5 m with drive-through doors for forklift access
Air supply	60,000-100,000 m³/h with three-stage filtration
Pretreatment	High-pressure spray degreasing, shot blast derusting, multi-stage phosphate or silane treatment
Coating system	Epoxy primer, epoxy intermediate coat and polyurethane topcoat
Heating	Natural gas, diesel or electric
Reference projects	Russia, Germany, Chile, Pakistan and China
Delivery record	800+ coating lines for 500+ clients in 36 countries (MUSI engineering team, cumulative since 2011)
Services	Design, manufacturing, installation, commissioning, operator training and after-sales support from one company

Best suited for

Construction equipment, agricultural machinery, machine tools and heavy equipment

Workpiece size

Up to 12 m long and 6 m wide

Typical workpieces

Excavator chassis, loader booms, tractor housings, machine tool beds, pressure vessels, mining and port machinery

Spray booth

Standard 12 × 6 × 5 m with drive-through doors for forklift access

Air supply

60,000-100,000 m³/h with three-stage filtration

Pretreatment

High-pressure spray degreasing, shot blast derusting, multi-stage phosphate or silane treatment

Coating system

Epoxy primer, epoxy intermediate coat and polyurethane topcoat

Heating

Natural gas, diesel or electric

Reference projects

Russia, Germany, Chile, Pakistan and China

Delivery record

800+ coating lines for 500+ clients in 36 countries (MUSI engineering team, cumulative since 2011)

Services

Design, manufacturing, installation, commissioning, operator training and after-sales support from one company

Frequently Asked Questions

How large a workpiece can a heavy machinery coating line handle?

Workpieces up to 12 m long and 6 m wide. The standard spray booth is 12 × 6 × 5 m with drive-through doors for forklift access and an air supply of 60,000-100,000 m³/h with three-stage filtration.

What pretreatment does heavy machinery need before painting?

Raw steel structures often carry cutting oil, anti-rust oil and oxide layers. MUSI uses high-pressure spray degreasing, shot blast derusting and multi-stage phosphate or silane treatment to give the coating good adhesion.

Which paint system is used on heavy machinery?

A three-layer heavy-duty anti-corrosion system: epoxy primer, epoxy intermediate coat and polyurethane topcoat, which passes 2,000+ hours of salt spray.

Is heavy machinery coated on a flow line or in a booth?

Heavy machinery is usually built as single pieces or small batches, which is difficult to run on a flow line, so most shops use a spray booth plus a drying booth.

Which fuels can heat the drying booth?

Natural gas, diesel or electric heating, chosen to suit local energy availability.

Questions buyers ask before ordering

quotation · price · lead time · installation · warranty

What information do you need to prepare a quotation?

Send part drawings or photos, the largest part size and weight, the material, the required output per shift, the paint or powder type and number of colours, and the available floor space, ceiling height and power or gas supply. MUSI engineers reply within 24 hours; a recommended configuration and quotation follow once your part data is complete.

How much does this equipment cost?

Budget depends on part size, throughput and the level of automation. Indicative ex-works ranges are published in our complete coating line cost guide; a configured quotation is prepared from your part data. Published indicative ex-works ranges: a complete powder coating line is roughly USD 75,000–230,000 semi-automatic, USD 200,000–600,000 for a standard automatic line and USD 600,000–2,000,000 for a high-throughput automated plant.

What is the lead time?

Standard configurations ship in 30–60 days from contract signing and down payment; custom configurations take longer. The delivery date is fixed in the contract.

Do you install and train operators overseas?

Yes. MUSI engineers carry out on-site installation and commissioning and give 3–5 days of operator and maintenance training. MUSI has delivered 800+ coating lines to customers in 36 countries.

What warranty and after-sales support are included?

12 months full-machine warranty, 36 months on critical components and up to 60 months on structural parts. International customers get 24-hour phone response and 72-hour on-site arrival; spare parts ship from the Changzhou headquarters.

Can the environmental equipment be supplied with the line?

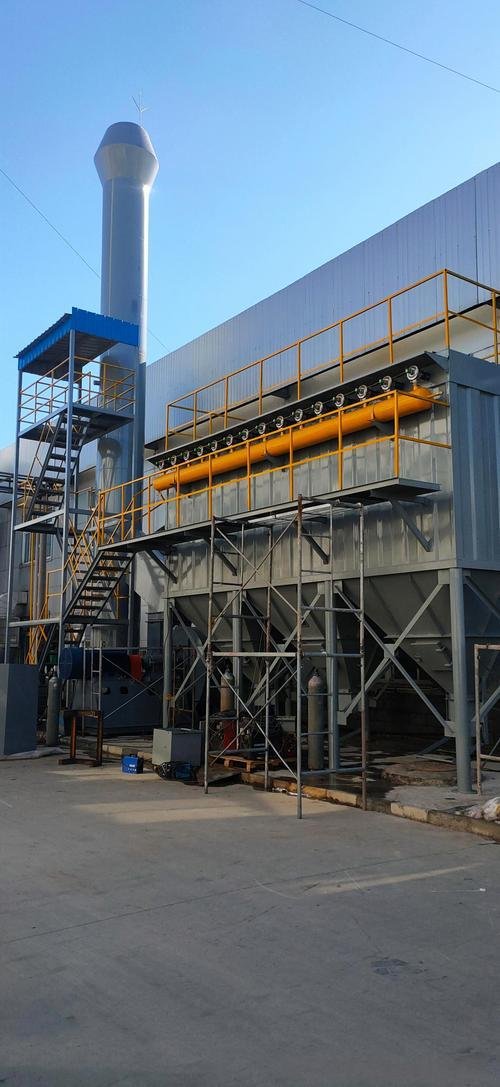

Yes. VOC treatment (RTO, RCO, activated carbon, zeolite rotor), dust collection and paint wastewater treatment are supplied with the coating line under one contract; MUSI has equipped 50+ coating facilities whose projects all passed local environmental compliance reviews.

Request a configured quotationWhatsApp +86 181 5173 1332 · lin@coating-spray.com

Heavy Machinery Coating

Industry Overview

Typical Workpieces

Industry Coating Challenges

Oversized & Heavy

Heavy Oil & Rust

Outdoor Durability

Small Batches, Many Variants

MUSI's Targeted Solutions

1. Large Auto Spray Booths

2. Heavy-Duty Pretreatment

3. Heavy-Duty Anti-Corrosion Coating

4. Multi-Fuel Curing Ovens

Recommended Equipment

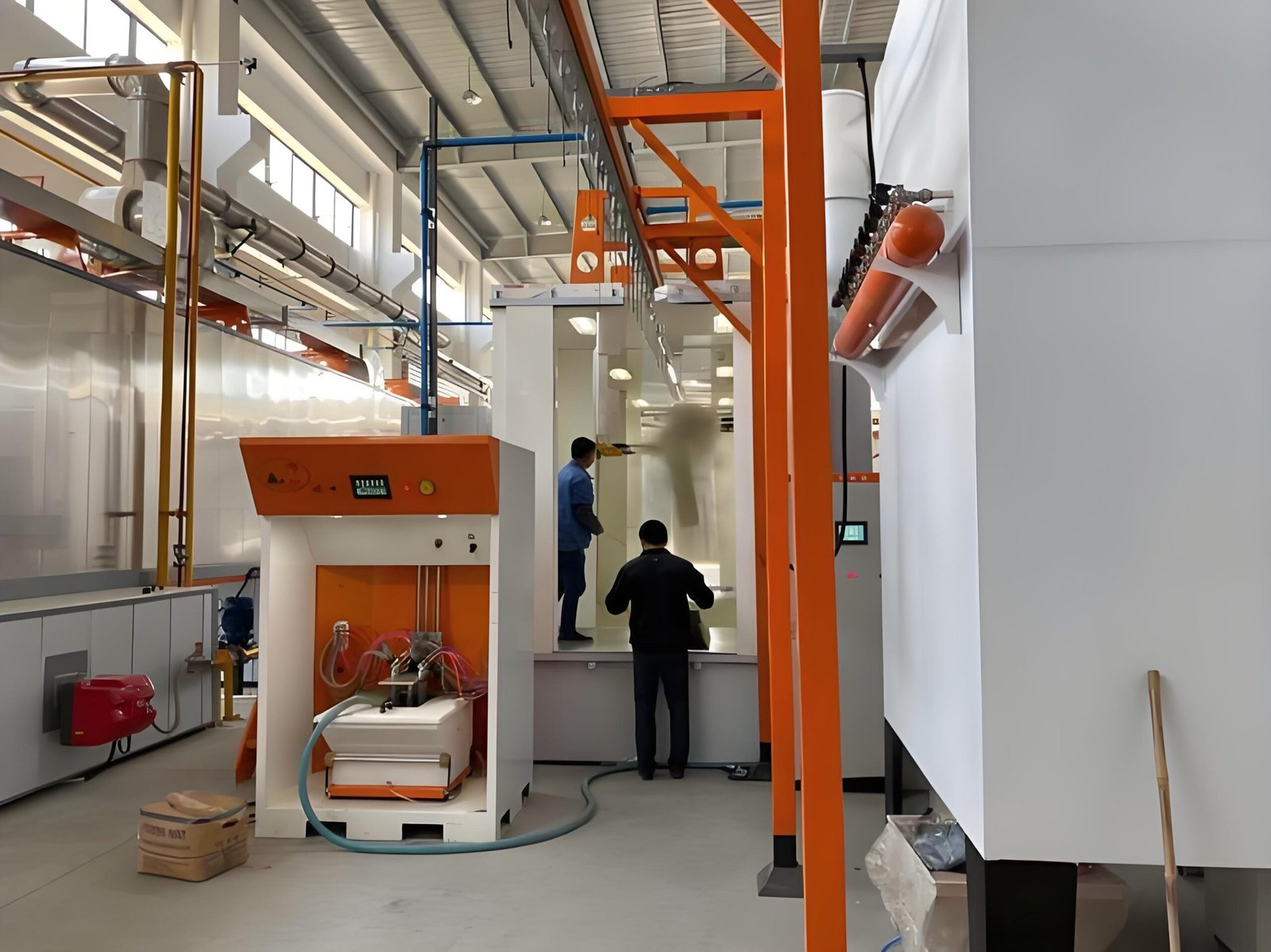

Modular Combined Spray Line

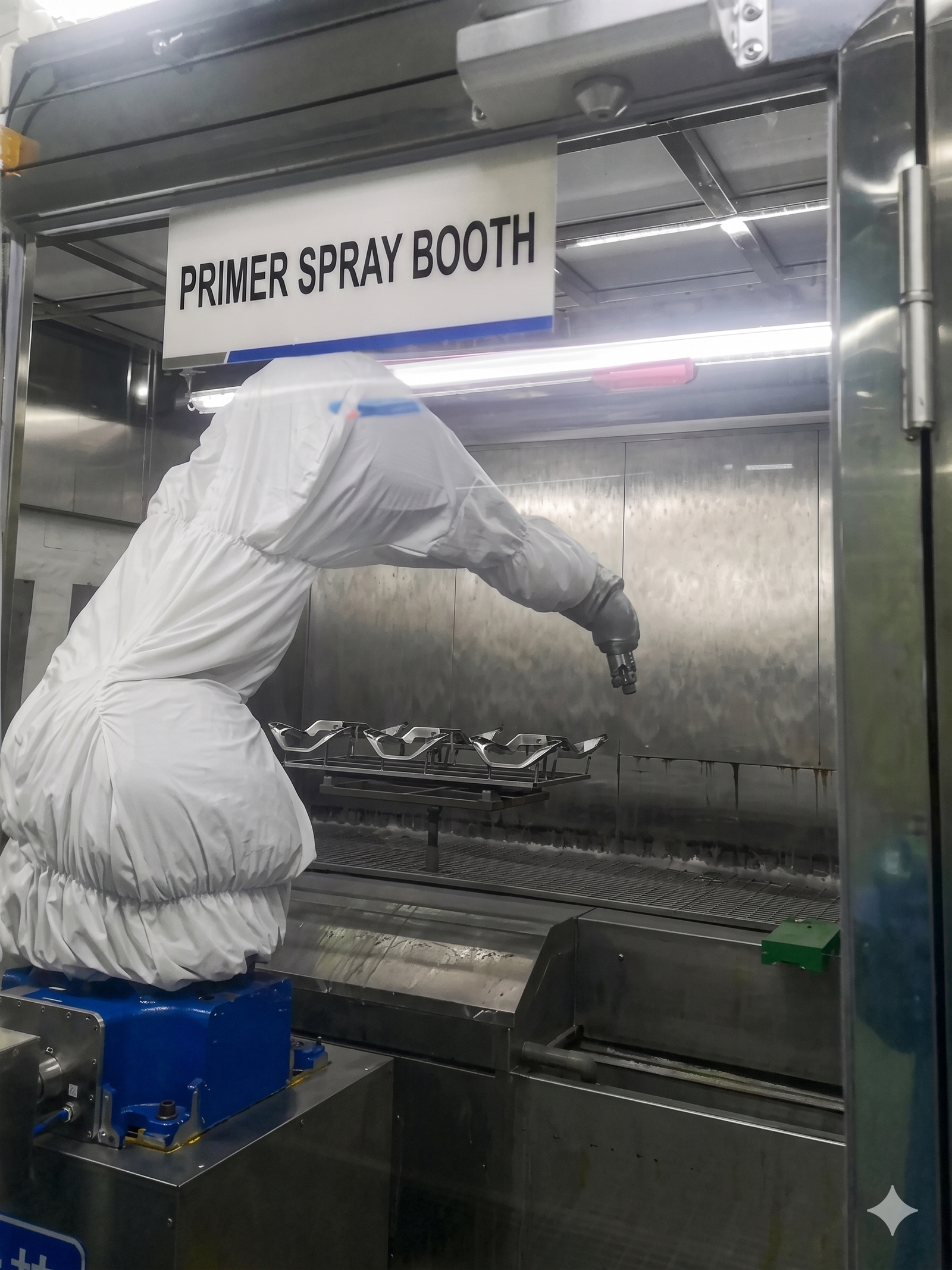

Solvent-Based Liquid Spray

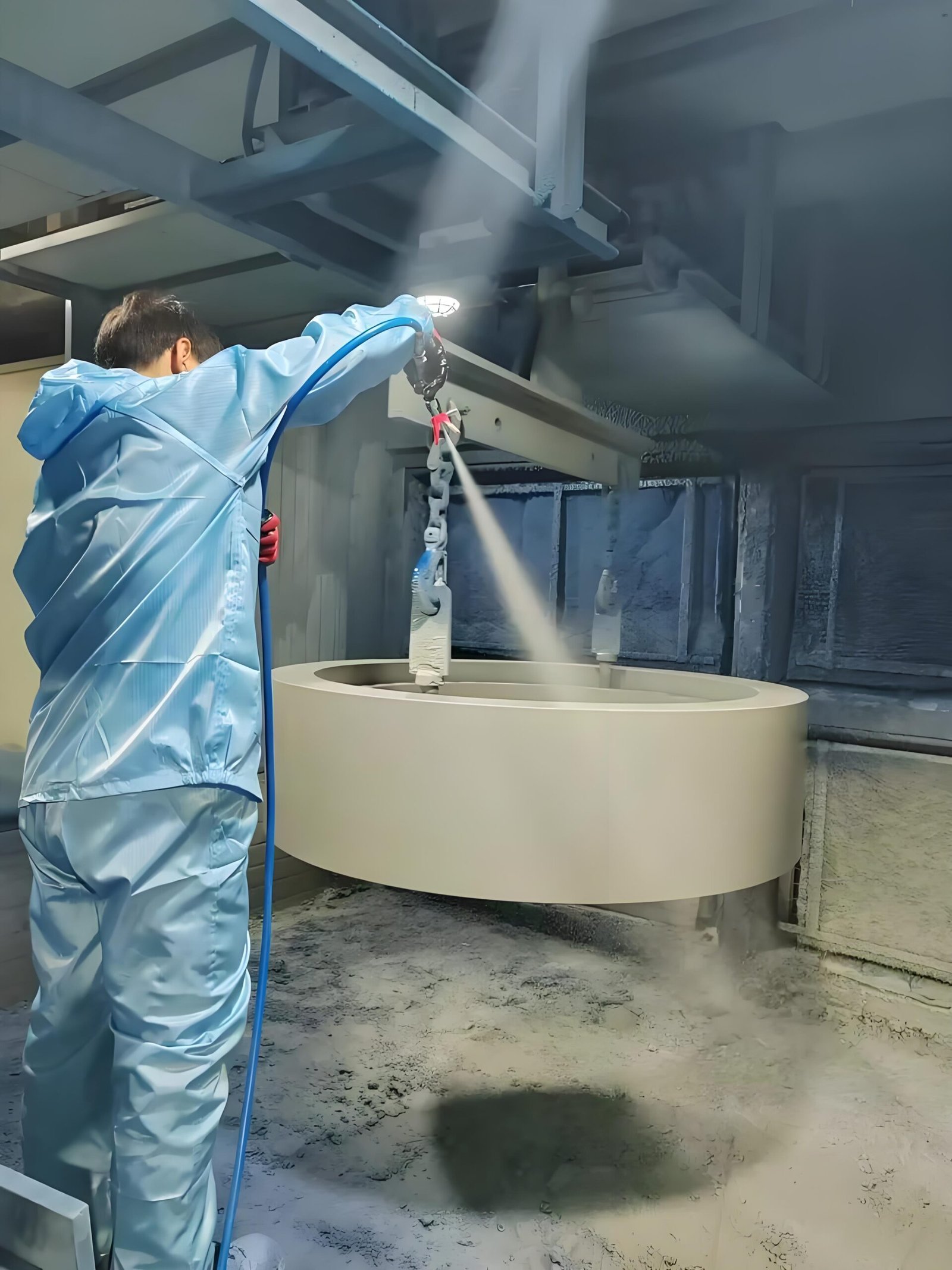

Airless High-Pressure Spray
