Which dust collector suits my workshop?

Baghouse collectors suit high dust loads on continuous lines. Cartridge collectors suit fine dust and tight footprints. Cyclone separators pre-separate coarse dust, wet scrubbers handle paint mist and water-soluble gases, and a central system extracts from the whole workshop.

What outlet dust concentration is reached?

Baghouses bring outlet dust to ≤10 mg/m³ and cartridge units to ≤5 mg/m³, with ≥99.99% efficiency on 0.3 µm particles.

What air volume can the systems handle?

MUSI sizes dust collection from 1,000 m³/h up to 500,000 m³/h, and a central system serves 5–100 suction points.

How much energy does a central system save?

A central system serving 5–100 suction points saves 25–40% of fan energy against standalone units.

What information do you need to prepare a quotation?

Workpiece size, weight, geometry and material; the coating type (powder, liquid, UV or 2K); shift output, cycle time and colour requirements; and the available area, ceiling height, electrical and gas supply and emission requirements of your facility.

What do MUSI dust collection systems cost and how long is the lead time?

Price is quoted per project, because every unit is configured to the buyer requirements, parts and production volume. Standard configurations ship in 30-60 days with a 12-month full-machine and 36-month critical-component warranty. On-site installation, commissioning and operator training are available worldwide. Structural parts are covered for up to 60 months.

Industrial Dust Collection Systems

Dust Collection Systems Overview

Effective dust collection is the foundation of a safe, compliant, and productive workshop. MUSI delivers turnkey dust collection solutions tailored to coating overspray, blast media residue, welding fumes, grinding dust, and other industrial particulates. MUSI Technology manufactures dust collection systems in Changzhou, China, sized from 3,000 to 200,000 m³/h, and supplies them with its coating lines or as stand-alone units to customers in 36 countries.

Our systems are engineered to meet local air quality regulations (PM2.5, PM10, mg/m³ limits) while reducing energy consumption through high-efficiency fans, automatic cleaning cycles, and intelligent control. Modular design supports future capacity expansion.

Industries: Metal Hardware, Heavy Machinery, Steel Structures & Large Workpieces

Models in This Category

Pulse Jet Baghouse

Industry-standard bag filter dust collector with automatic pulse-jet cleaning — high efficiency (≥99.9%) for fine particles in coating, blasting, and welding applications.

PULSE JET BAGHOUSEDetails

Cartridge Dust Collector

Compact cartridge filter unit with HEPA-grade media — ideal for fine and dry dust capture, including powder coating overspray and grinding particles.

CARTRIDGE COLLECTORDetails

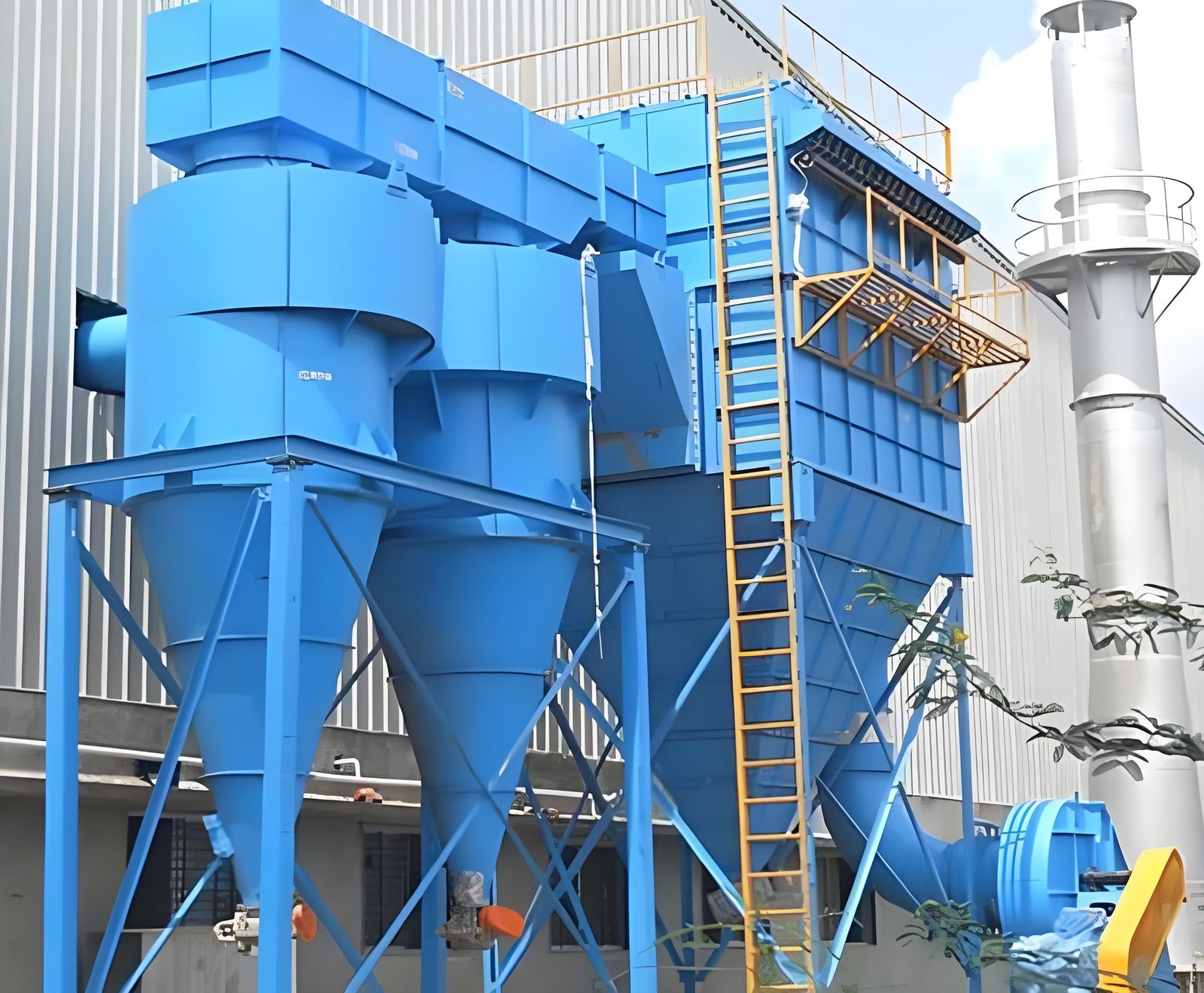

Cyclone Separator

Pre-separation unit using centrifugal force to remove coarse particles before bag or cartridge filtration — extends downstream filter life and reduces operating cost.

CYCLONE SEPARATORDetails

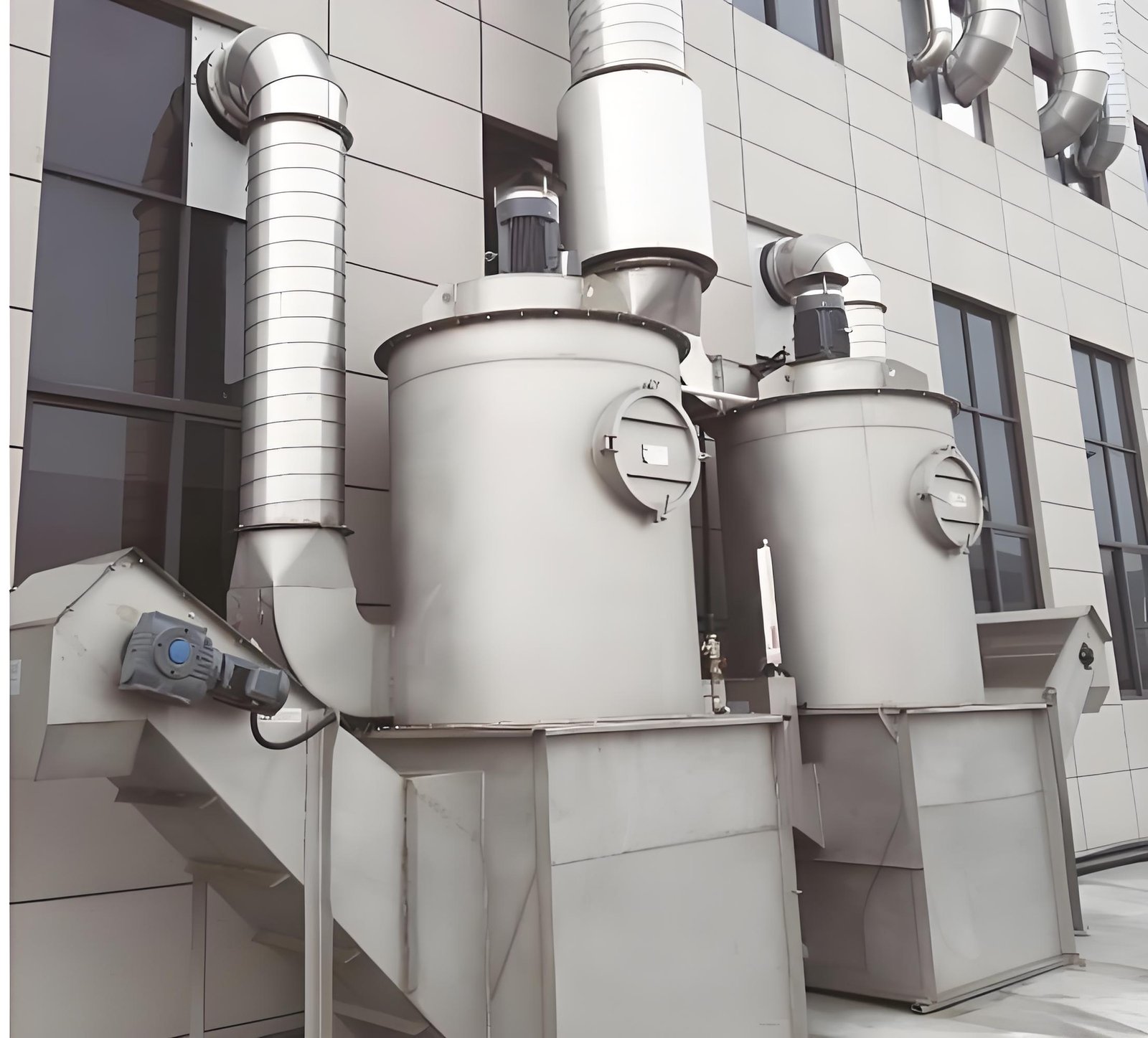

Wet Scrubber

Water-based dust capture system for sticky, hot, or explosive dust — safe handling of welding fumes, paint mist, and combustible particles.

WET SCRUBBERDetails

Central Dust Extraction System

Plant-wide centralized extraction with multiple capture hoods, ductwork, and main collector — engineered for entire workshops or production facilities.

CENTRAL EXTRACTIONDetails

Cartridge dust collector with red fan housing and cyclone on a steel platform above a coating line

Sanding and Grinding Booth

Open-front or downdraft booth with cartridge or wet dust collection for sanding, weld grinding and prep before coating.

DUST COLLECTION BOOTH Details

Selection Considerations

Different models target different applications and capacities. Before purchasing, please consider:

Workpiece characteristics — size, weight, geometry (flat / 3D), material (metal / plastic / wood)
Coating type — powder / liquid / UV / 2K, etc.
Capacity needs — shift output, cycle time, multi-color requirements
Facility conditions — available area, ceiling height, electrical/gas supply, emission requirements
Budget — balance of upfront investment and long-term running cost

MUSI engineers can run process simulations and ROI calculations based on your specifics. Contact us for a free proposal.

Type	Typical use	Published figures
Baghouse dust collector	High dust loads, continuous lines	5,000–200,000 m³/h; PTFE or polyester needle felt; 100–3,000 m² filter area; pulse-jet cleaning at 0.4–0.6 MPa; ≥99.9% on ≥1 µm; outlet ≤10 mg/m³
Cartridge dust collector	Fine dust, tight footprint	3,000–100,000 m³/h; PTFE-coated polyester or nanofiber cartridges at 10–25 m² each; online pulse-jet cleaning; ≥99.99% on ≥0.3 µm; outlet ≤5 mg/m³; cartridge life 2–3 years
Cyclone separator	Pre-separation of coarse dust	1,000–50,000 m³/h; inlet velocity 16–22 m/s; 85–95% on ≥10 µm; pressure drop 800–1,500 Pa; single or multi-cyclone, 1–12 units; −20 °C to 250 °C
Wet scrubber	Paint mist and water-soluble gases	2,000–80,000 m³/h; 0.5–1.5 L of water per m³ of air; pressure drop 1,000–2,500 Pa; removal ≥95%; SS316 anti-clogging nozzles; two-stage demister; SS304, PP or FRP tank
Central dust collection system	Whole-workshop extraction	20,000–500,000 m³/h total; 5–100 suction points; 100–800 mm ducts; −3,000 to −8,000 Pa; bag, cartridge or hybrid filters; PLC + VFD with HMI; 25–40% energy saving against distributed units

Best suited for	Coating overspray, blast media residue, welding fumes and grinding dust
Configurations	Baghouse dust collector · Cartridge dust collector · Cyclone separator · Wet scrubber · Central dust collection system
Air volume	1,000–500,000 m³/h
Outlet dust	≤10 mg/m³ with a baghouse, ≤5 mg/m³ with cartridge collectors
Lead time	30-60 days for standard configurations
Warranty	12 months on the full machine, 36 months on critical components
Delivery record	800+ coating lines for 500+ clients in 36 countries (MUSI engineering team, cumulative since 2011)
Services	Design, manufacturing, installation, commissioning, operator training and after-sales support from one company
Price	Quoted per project, based on parts, configuration and production volume

Type	Published figures
Baghouse dust collector	5,000–200,000 m³/h; PTFE or polyester needle felt; 100–3,000 m² filter area; pulse-jet cleaning at 0.4–0.6 MPa; ≥99.9% on ≥1 µm; outlet ≤10 mg/m³
Cartridge dust collector	3,000–100,000 m³/h; PTFE-coated polyester or nanofiber cartridges at 10–25 m² each; online pulse-jet cleaning; ≥99.99% on ≥0.3 µm; outlet ≤5 mg/m³; cartridge life 2–3 years
Cyclone separator	1,000–50,000 m³/h; inlet velocity 16–22 m/s; 85–95% on ≥10 µm; pressure drop 800–1,500 Pa; single or multi-cyclone, 1–12 units; −20 °C to 250 °C
Wet scrubber	2,000–80,000 m³/h; 0.5–1.5 L of water per m³ of air; pressure drop 1,000–2,500 Pa; removal ≥95%; SS316 anti-clogging nozzles; two-stage demister; SS304, PP or FRP tank
Central dust collection system	20,000–500,000 m³/h total; 5–100 suction points; 100–800 mm ducts; −3,000 to −8,000 Pa; bag, cartridge or hybrid filters; PLC + VFD with HMI; 25–40% energy saving against distributed units
