Energy-Storage Cabinet Coating Lines in Southeast Asia: Controlling Humidity, Flash Rust and Cure

Provided by Lin Cong, Technical Director, MUSI Technology · Published September 26, 2026 · Last reviewed September 26, 2026

Quick answer: In Vietnam, Thailand, Malaysia and Indonesia, humidity is the paint shop’s main enemy. Wet air causes flash rust between pretreatment and painting, condensation on cold steel, blushing in solvent paints and slow flash-off in waterborne ones. A cabinet line for the region needs a dry-off oven, conditioned booth air and a short, closed path from pretreatment to the first coat.

How humidity shows up as defects

Flash rustfreshly cleaned steel oxidises within hours in tropical air. Pretreatment should be followed immediately by a dry-off oven and then primer.
Condensationsteel colder than the dew point collects moisture. A common rule is to keep the steel surface at least 3 °C above the dew point during painting.
Slow flash-offwaterborne paints dry slowly in humid air, so a heated flash-off zone before the oven keeps takt time stable.

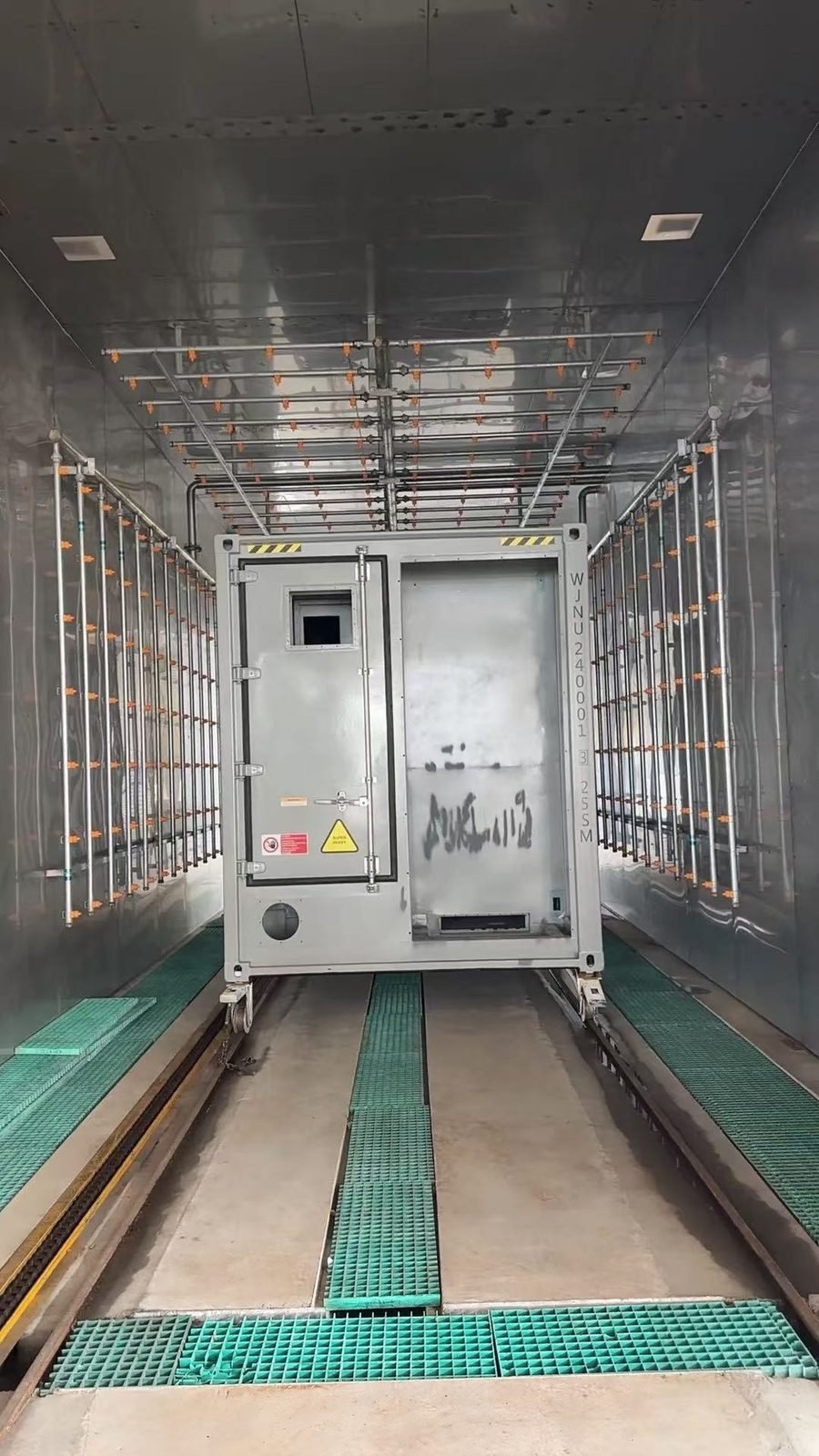

Energy-storage cabinet rain test chamber
Energy-storage cabinet rain test chamber

Pretreatment for the tropics

Multi-stage spray or dip pretreatment with good rinse water control gives a clean, conversion-coated surface. Chemical dosing should be automatic, because bath concentrations drift faster at high temperatures. Monsoon rain also makes a rain test at the end of the line especially useful: it catches gasket and seam leaks before cabinets ship.

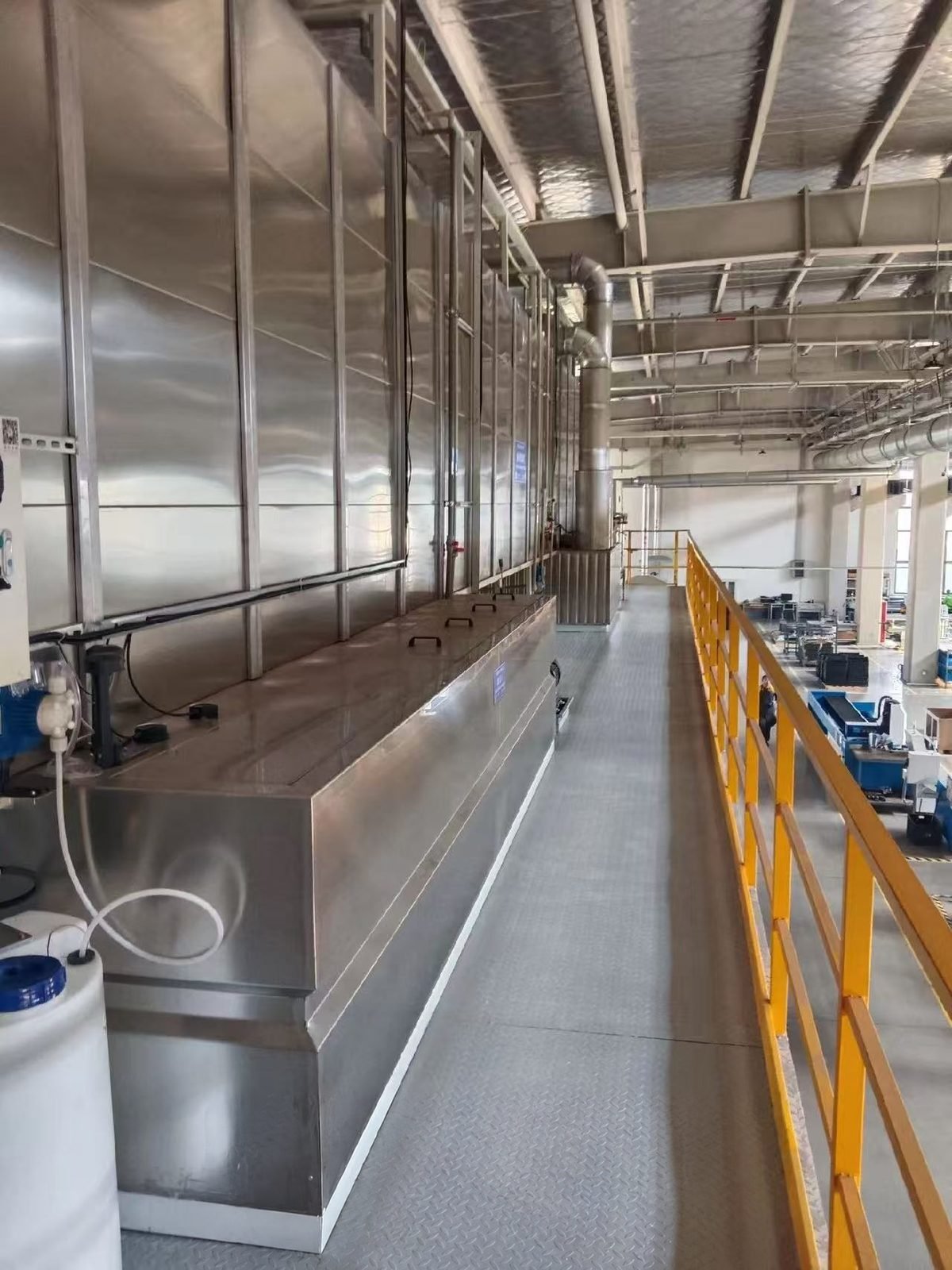

Pretreatment tank with chemical dosing tank
Pretreatment tank with chemical dosing tank

Reference line configuration

For reference, a current 20-ft energy-storage box line design handles boxes of 6,058 × 2,438 × 2,591 mm up to 2,500 kg on a box-pulling chain, with automatic blasting, primer, intermediate and topcoat booths of 10 × 6.6 × 5.2 m, paint drying at 80–120 °C, powder curing at 200–220 °C, a rain test chamber and 160,000 m³/h of VOC treatment. The full table is on our container line case; MUSI’s fastest energy-storage box lines release one finished box per minute.

FAQ

Do we need air conditioning for the whole booth? Not always. Conditioning the booth supply air and keeping booths closed with fast-acting doors is usually enough.

Powder or liquid? Powder avoids solvent blushing and flash-off issues entirely and suits cabinets well; liquid gives more flexibility on film build and colour.

Where MUSI Technology fits

MUSI has supplied coating lines in Indonesia and Vietnam and builds complete cabinet lines with pretreatment, dry-off, booths, ovens and rain testing. Send cabinet size and output for a layout.
